2023
Yamaha
Wolverine RMAX4 1000 XT-R
Stock #YAM107312
‹
›
Reset Zoom
X
‹
›
-
+
‹
›
This vehicle is getting attention.
270 people have recently viewed it.
Check Availability
Hi, my name is
First Name
Last Name
and I'm interested in this

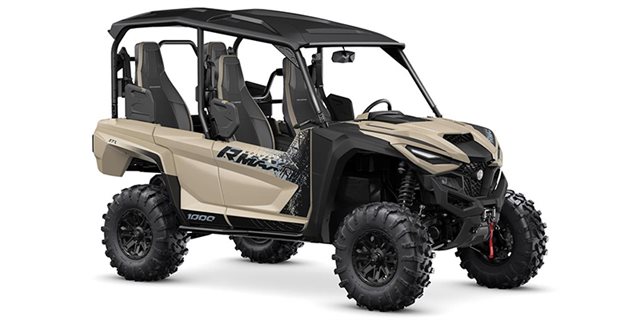

2023 Yamaha Wolverine RMAX4 1000 XT-R
. I'm in the
Zip Code
area and you can reach me at
Email
or by phone at
Phone
Is this unit still available?
What payment terms are available?
When can I test ride this unit?
Phone
MarketingName
HarleyName
SubModel
SubscriberId
SubscriptionId
VehicleId
Year
ModelName
MakeDivision
ReturnURL
EPriceForm
InstantPrice
CampaignName
CampaignType
Submit
Details
Status:
New
Vehicle:
2023 Yamaha Wolverine RMAX4 1000 XT-R
VIN:
5Y4AN39YXPA107312
Model Number:
YXF10WRZPB
Mileage:
1 miles
Stock Number:
YAM107312
Title:
Clear
Location:
Wood Powersports - Splash Page
Warranty:
Manufacturer's w/ Extended Available
Specifications
AUDIO & COMMUNICATION
Number Of Speakers:
2
BRAKES
Front Brake Diameter (in):
10
Front Brake Diameter (mm):
255
Front Brake Type:
Dual Hydraulic Disc
Rear Brake Diameter (in):
9.6
Rear Brake Diameter (mm):
244.5
Rear Brake Type:
Dual Hydraulic Disc
DRIVE LINE
Differential Lock Location:
Front
Driveline Brand:
On-Command™
Driveline Type:
Selectable 4X2 / 4X4
Limited Slip Differential Location:
Front
Number Of Driveline Modes:
2
ENGINE
Bore (in):
3.66
Bore (mm):
93
Carburetion Type:
Fuel Injected
Compression Ratio:
11.2
Cooling:
Liquid
Cylinders:
2
Displacement (cc):
999
Displacement (ci):
60.9
Engine Stroke:
4-Stroke
Engine Type:
Parallel Twin
Fuel Injector Size (mm):
48
Fuel Injector:
Yes
Fuel Requirements:
Regular
Fuel Type:
Gas
Speed Governor:
Yes
Starter:
Electric
Stroke (in):
2.89
Stroke (mm):
73.5
Valve Configuration:
DOHC
Valves Per Cylinder:
4
Valves:
8
EXTERIOR
Bash Plate (Front):
Yes
Body Material:
Plastic
Brush Guard:
Yes
Cab Canopy Material:
Hard
Cab Door Material:
Hard
CV Boot Cover:
Yes
Exhaust Guard:
Yes
Frame:
Steel
Full Length Skid Plate:
Yes
Radiator Guard:
Yes
INSTRUMENTATION
Fuel Level Warning Type:
Gauge
Temperature Warning Type:
Light
LIGHTS
Type:
LED
SEATS
Headrest:
Yes
Number Of Rows:
2
Number Of Seats:
4
Seat Material:
Vinyl
Seat Type:
Bucket
STEERING
Steering Control:
Steering Wheel
Steering Type:
Power
STORAGE
Bed Capacity (kgs.):
272.2
Bed Capacity (lbs.):
600
Integral Tie-Down Hooks:
Yes
Number Of Cupholders:
2
SUSPENSION
Adjustment Type:
Spring Mounted Adjustment
Front Adjustable Fork Pre-Load:
Yes
Front Stabilizer Bar:
Yes
Front Suspension Brand Name:
Fox®
Front Suspension Type:
Independent Double Wishbone
Front Travel (in):
14.2
Front Travel (mm):
360.7
Number Rear Shock Absorbers:
2
Rear Adjustable Shock / Spring Pre-Load:
Yes
Rear Stabilizer Bar:
Yes
Rear Suspension Brand Name:
Fox®
Rear Suspension Type:
Independent Double Wishbone
Rear Travel (in):
13.3
Rear Travel (mm):
337.8
TECHNICAL SPECIFICATIONS
Engine Displacement to Weight (cc):
0.49
Fuel Capacity (gal):
9.2
Fuel Capacity (l):
34.8
Ground Clearance (in):
13.4
Ground Clearance (mm):
340.4
Height (in):
83.1
Height (mm):
2110.7
Length (ft):
10.68
Length (ft/ft):
10
Length (ft/in):
8.1
Length (in):
128.1
Length (mm):
3253.7
Towing Capacity (kgs):
907.2
Towing Capacity (lbs):
2000
Turning Radius (ft):
19.7
Wet Weight (kg):
929.9
Wet Weight (lbs):
2050
Wheelbase (in):
90.2
Wheelbase (mm):
2291.1
Width (in):
66
Width (mm):
1676.4
TOWING & HAULING
Rear Hitch Type:
Receiver
Size (cm):
5.1
Size (in):
2
Weight (kgs):
2041.2
Weight (lbs):
4500
Winch Brand Name:
Warn®
TRANSMISSION
Hi / Low Range:
Yes
Primary Drive (Engine / Transmission):
Belt
Primary Drive (Front Wheel):
Shaft
Primary Drive (Rear Wheel):
Shaft
Reverse:
Yes
Transmission Brand:
UltraMatic™
Transmission Type:
Continuously Variable (CVT)
WHEELS & TIRES
Front Tire (Full Spec):
Maxxis® Carnage™ 29 X 9.00R-14
Front Tire Diameter (in):
29
Front Tire Width:
9
Front Wheel Diameter:
14
Rear Tire (Full Spec):
Maxxis® Carnage™ 29 X 11.00R-14
Rear Tire Diameter (in):
29
Rear Tire Width:
11
Rear Wheel Diameter:
14
Tire Brand:
Maxxis®
Tread Type:
All Terrain
Tube / Tubeless:
Tubeless
Wheels Composition:
Aluminum
